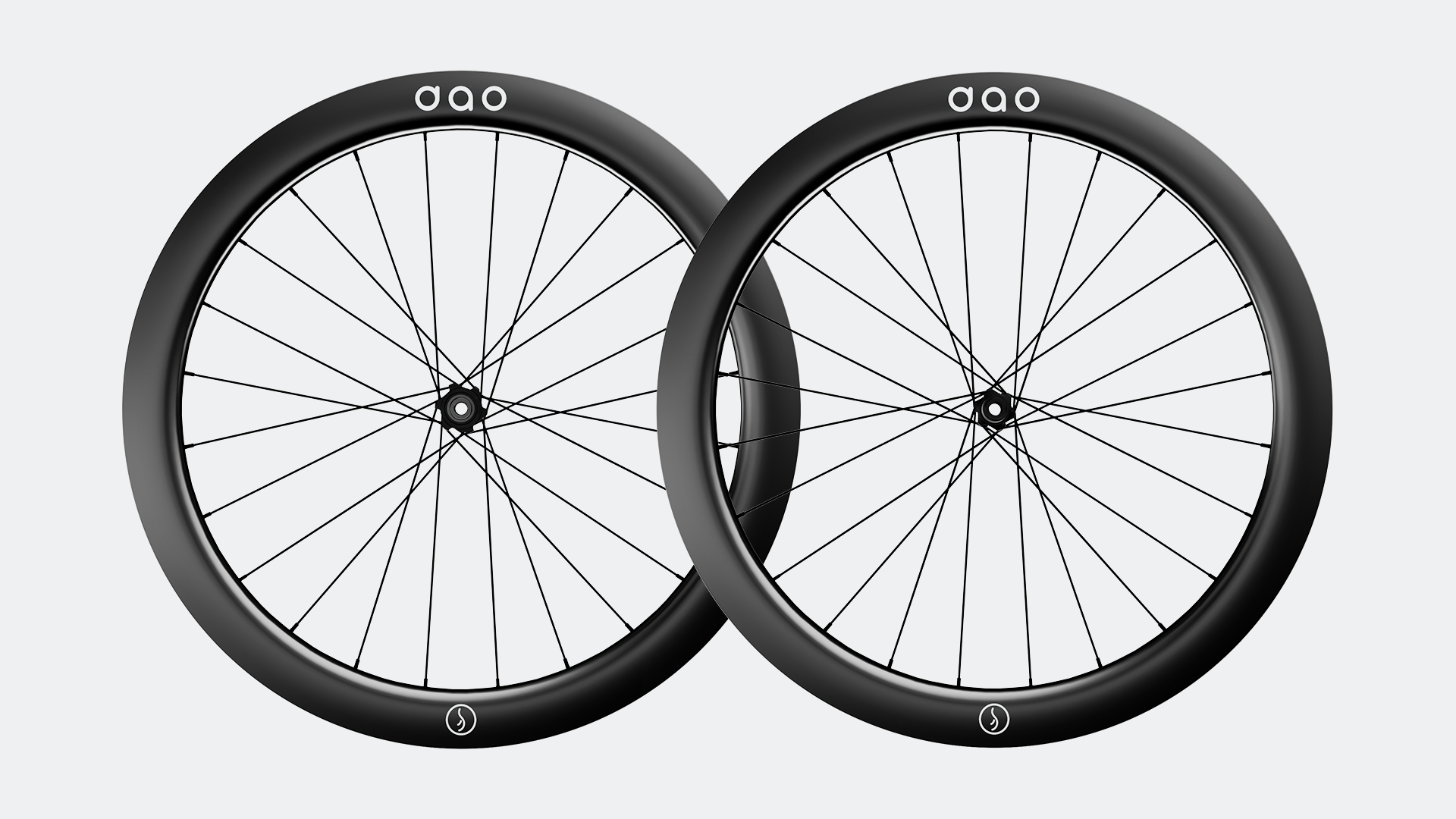

Carbon 50
£600.00
DAO Carbon 50 – a great aero road wheelset. Deep enough for those fast rides and race-ready.
- 50mm Depth: Maximum aerodynamics for time trials and flat terrain
- Carbon Fiber Construction: Lightweight yet durable
- Designed for Balance: Weight-performance-price equilibrium
- UK Market Ready: Localized content and launch strategy

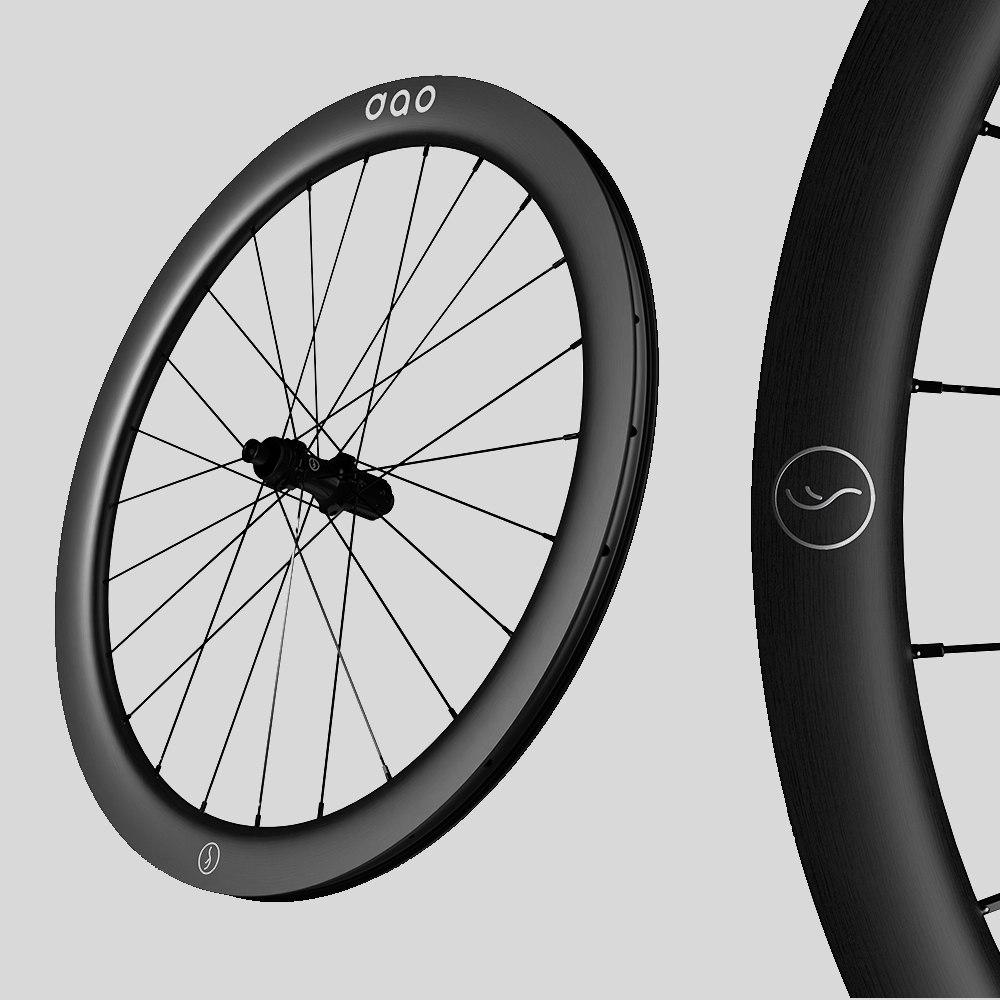

A versatile, aero, and lightweight rim with DAO A3 hub.
The 50mm profile wheel is the most versatile aero wheel, striking the perfect balance between lightweight performance, high-speed efficiency, and added comfort compared to the 80mm profile. The rim design is optimised to add stability in tough cross-wind conditions. This is the ideal wheelset for riders looking for a fast, responsive ride without compromising versatility for mixed courses.
Core technologies

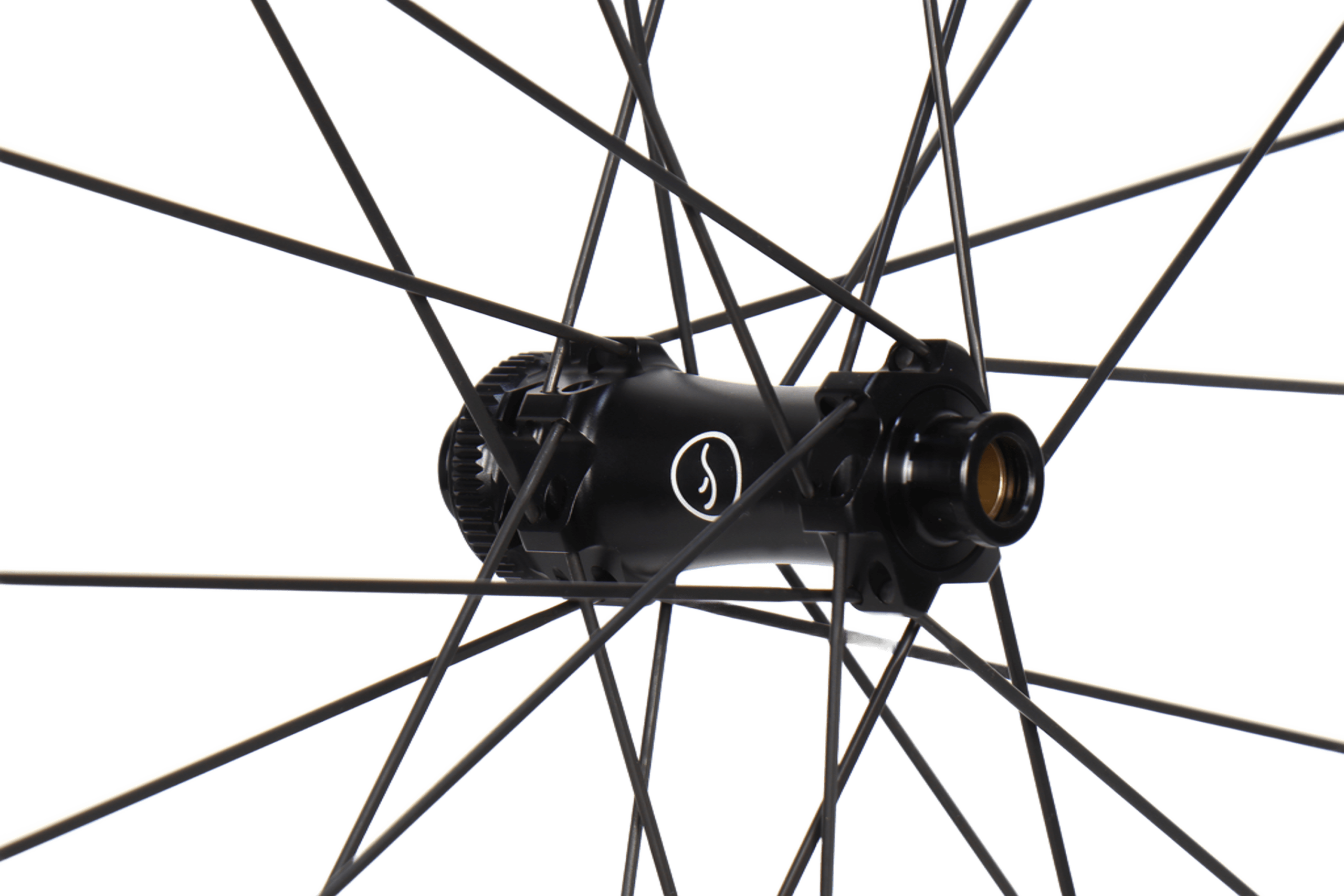

DAO A3 HUB
Engineered to deliver unparalleled performance

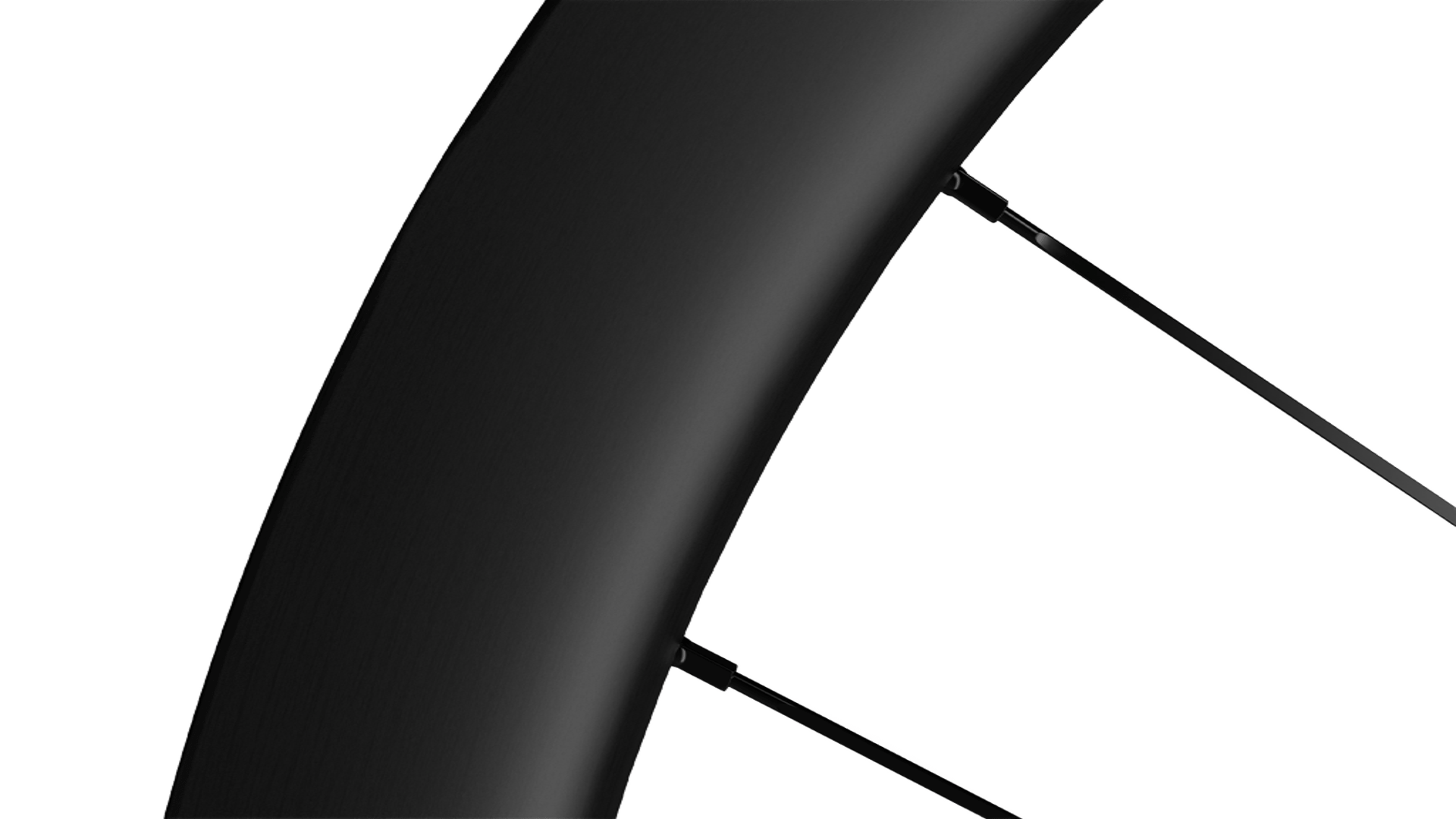

ANGLED SPOKE HOLES
ANGLED SPOKE HOLES
Matching the angle of the spoke hole to the angle that the spoke leaves the rim at means that we can greatly reduce the stress at the spoke head. Implementing this technology requires added design and manufacturing work but the result is a far more reliable wheel with less chance of breaking spokes.
ANGLED SPOKE HOLES
Matching the angle of the spoke hole to the angle that the spoke leaves the rim at means that we can greatly reduce the stress at the spoke head. Implementing this technology requires added design and manufacturing work but the result is a far more reliable wheel with less chance of breaking spokes.
Technical specifications
Weight
| Weight Pair | 1620g |
|---|---|
| Weight Front | 745g |
| Weight Rear | 875g |

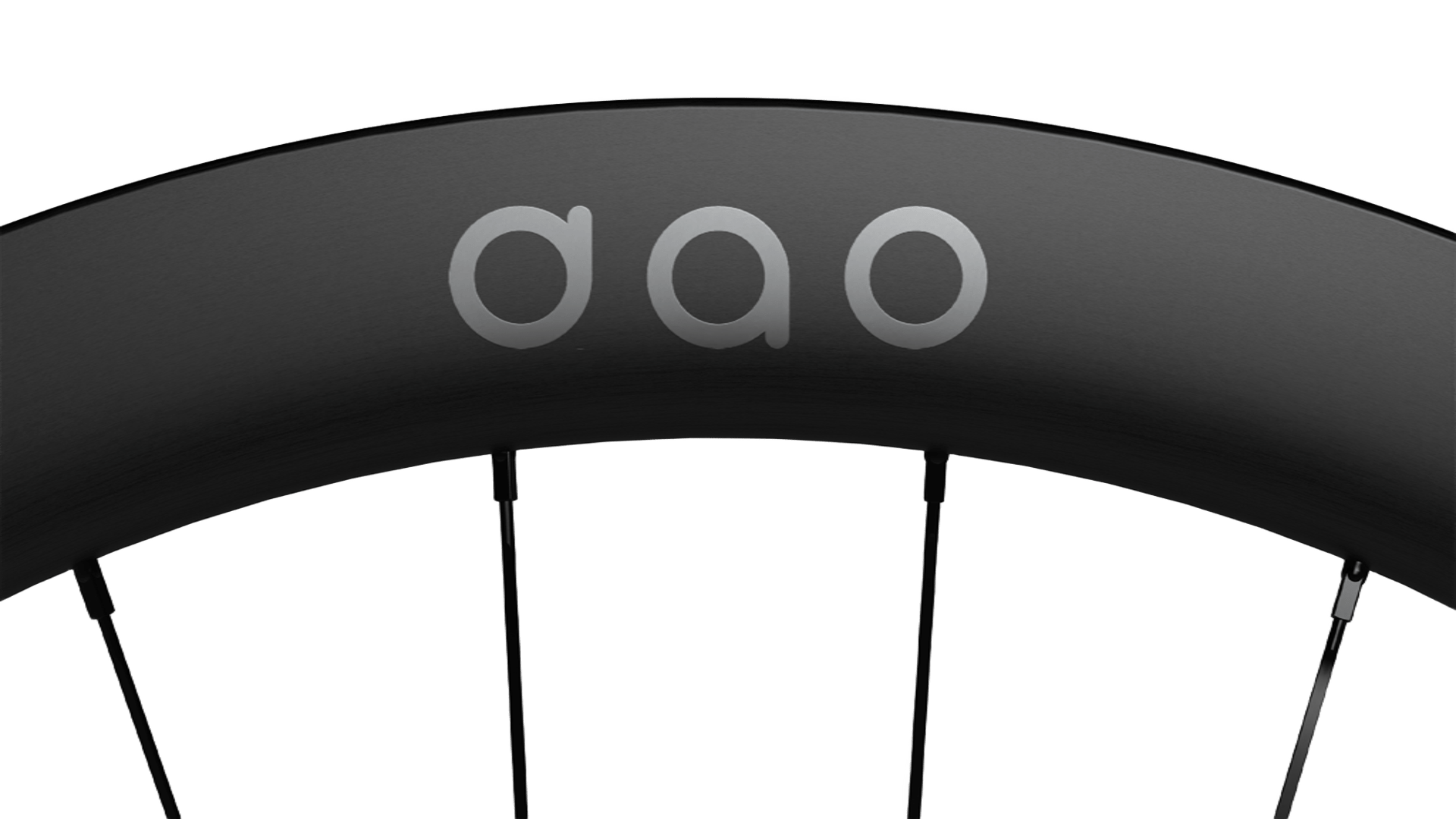

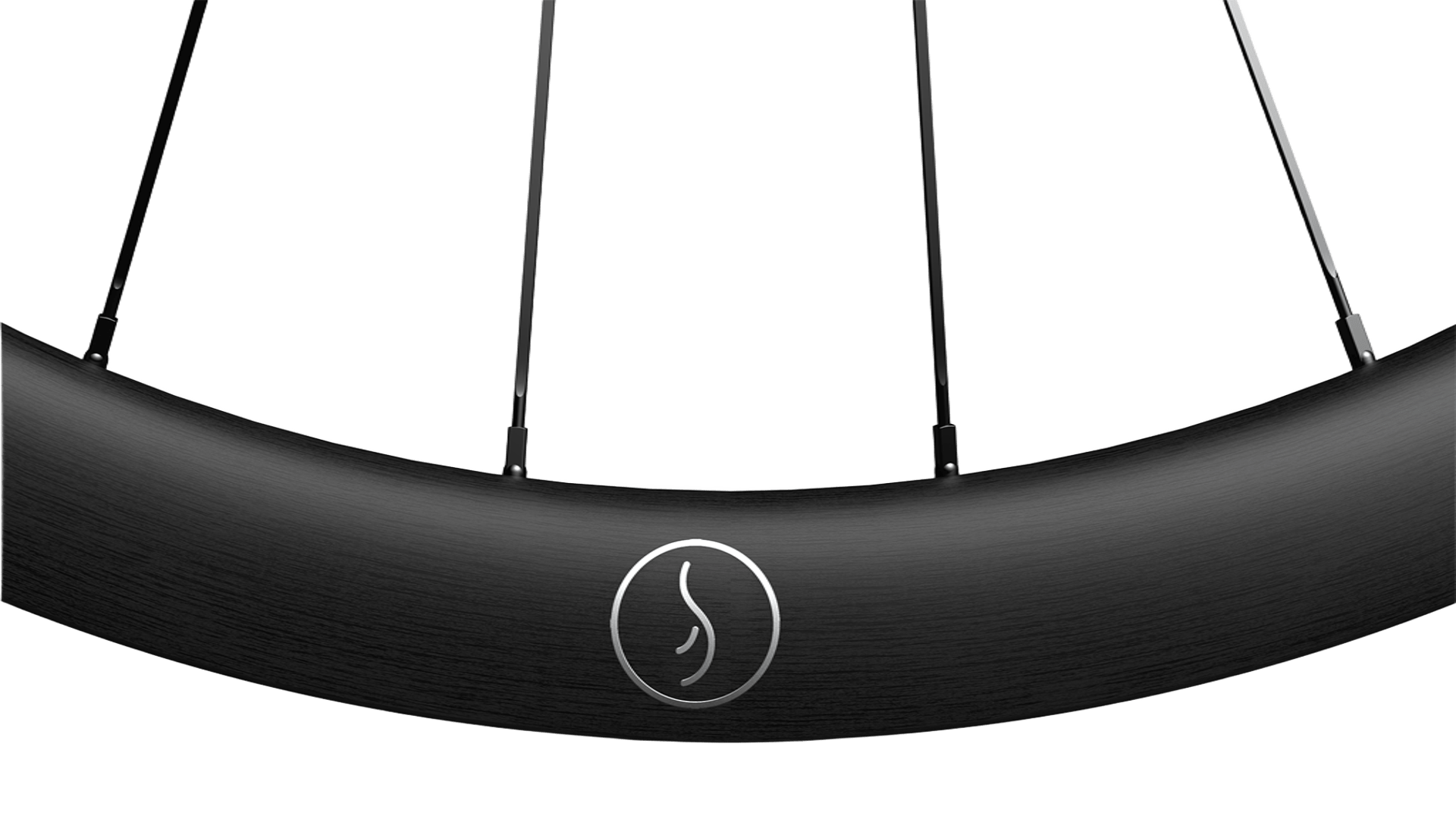

Rims
| Material | 100% Unidirectional carbon fiber |
|---|---|
| Rim Depth | 50 mm |
| Internal Width | 21 mm |
| External Width | 28.5 mm |
| Hole Count | Front: 24H, Rear: 24H |
| Brake | Disc Center Lock |
| ETRTO | 622x21TC |
| Tire | Clincher Tubeless Ready |
| Weight Limit | must not exceed 120 kg (bike weight included) |
Hubs
| Body Material | Aluminium |
|---|---|
| Drive System | Ratchet 36T |
| Rear Freehub Body | Shimano HG, Shimano Microspline, SRAM XDR, Campagnolo, Campagnolo N3W |
| Axle Material | Aluminum |
| Axle Size | Front 12x100 / Rear 12x142 thru-axle (QR caps sold separately) |
| Disc Standard | Disc Center Lock |
| Front Hub Bearing | Enduro DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm) |
| Rear Hub Bearing | Enduro DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm) |
Spokes & Nipples
| Spoke Shape | Flat, Straight-pull, 2.0 - (0.9x2.2) - 2.0 mm |
|---|---|
| Spoke Material | Stainless Steel |
| Nipples | Brass 16mm |
Compatibility
| Recommended Tubeless Tape Width | 25mm |
|---|---|
| Recommended Valve Length | 60mm |
| Recommended Tyer Width | 28mm |
Intended use
| Minimum Tyer Size | Width 25mm - pressure max. 6.1Bar/88PSI |
|---|---|
| Maximum Tyer Size | Width 45mm - pressure max. 3.5Bar/51PSI |
| ASTM category 2 | Road and offroad with jumps less than 15cm |
